1000nits 2.8" Sunlight Viewable TFT LCD Display - 480x640 RGB Industrial Display Module

Name: 1000nits 28quot Sunlight Viewable TFT LCD Display 480x640 RGB Industrial Display Module
Brand: SAEF
Price: 1 USD

Best 1000nits 2.8" Sunlight Viewable TFT LCD Display - 480x640 RGB Industrial Display Module wholesale

Brand Name : SAEF

Model Number : SFTO280PY-7201AN

Certification : ISO9001 / ISO14000

Place of Origin : ShenZhen / China

MOQ : 3 pcs

Price : Guaranteed Market-Lowest (Quote within 24h)

Payment Terms : PayPal, Alibaba Trade Assurance, T/T

Supply Ability : 3000K pcs per month

Delivery Time : 1-2 weeks

Packaging Details : Standard Exportation Package

Product : 2.8 inch TFT LCD

Resolution : 480 x 640（VGA）

Color : 262K

Display Type : IPS TFT LCD

Interface : RGB

Viewing Angle : 80°/80°/80°/80° (L/R/U/D)

Driver IC : ST7701S

Sunlight Readability : Yes

Surface Luminance : 1000 cd/m2 (nits)

Application : Industrial HMI, Outdoor Equipment

Backlight lifetime : 40,000 hours

Compliance : REACH & RoHS Compliant

Contact Now

High-Brightness Industrial Display for Outdoor & Harsh Environments

This 2.8" sunlight viewable TFT LCD module is engineered for durability and performance in demanding industrial, automotive, and outdoor applications. With a 1000 nits brightness rating, it ensures clear visibility even under direct sunlight. The 480x640 RGB resolution delivers sharp, vibrant visuals, making it ideal for control panels, medical devices, and ruggedized equipment.

Key Features:

1000 nits brightness for sunlight readability
2.8" diagonal size with 480x640 RGB resolution
Industrial-grade design for shock resistance and wide temperature tolerance (-20°C to +70°C)
RGB interface options for seamless integration with embedded systems
Anti-reflective coating to reduce glare in bright environments
Low power consumption (1.2W typical) for energy-efficient operation

Applications:

Industrial control panels
Automotive dashboards
Outdoor kiosks and signage
Medical diagnostic equipment
Ruggedized handheld devices

Why Choose This Display?

Reliable in Extreme Conditions: Designed to withstand dust, moisture, and vibrations.

Customizable Options: Available with touch screen, backlight color (white/amber), and mounting configurations.

Plug-and-Play Compatibility: Supports standard industrial protocols (e.g., SPI, I²C).

Specification:

Item	Specification	Unit
Screen Size	2.8 inch	Diagonal
Number of Pixel	480RGB(H)x640(V)	Pixels
Display area	43.2(H)x57.6(V)	mm
Pixel pitch	0.09(H)x0.09(V)	mm
Outline Dimension	46.2x65.2x2.3±0.2	mm
Pixel arrangement	RGB Vertical Stripe	――
Display mode	Normally Black	――
Viewing Direction(eye)	ALL	――
Display Color	262K	――
Luminance(cd/m2)	1100	nit
Contrast Ratio	1200:1	――
Interface	RGB
Back-light	LED Side-light type	――
Drive IC	ST7701S
Operation Temperature	-20~70	℃
Storage Temperature	-30~80	℃

Conclusion

The High Brightness 1000nits 2.8-inch TFT LCD Display is the ultimate solution for professionals seeking a powerful, versatile, and high-performing display. Elevate your devices with unparalleled brightness and clarity, and cater to a variety of applications from industries to consumer electronics.

External Dimensions

1000nits 2.8" Sunlight Viewable TFT LCD Display - 480x640 RGB Industrial Display Module

Interface Pin Definition

Pin No.	Symbol	Function
1	LEDA	LED back light(Cathode)
2	LEDK	LED back light(Cathode)
3	GND	Ground
4	VDD	Power Supply. 2.8~3.3V
5	GND	Ground
6	RESET	Reset input.
7	GND	Ground
8~25	DB17~DB0	RGB blue data input
26	GND	Ground
27	SDA	SPI interface clock
28	SCL	SPI interface clock
29	CS	Chip select input pin
30	HSYNC	Line synchronizing signal for RGB interface operation
31	HSYNC	Frame synchronizing signal for RGB interface operation
32	PCLK	Dot clock signal for RGB interface operation
33	DE	Data enable signal for RGB interface operation
34	GND	Ground

Electrical Characteristics

Item	Symbol	Min.	Typ.	Max.	Unit
Analog supply voltage	VDD	2.4	2.8	3.3	V
Digital supply voltage	VDDI	-	-	-
Input signal Voltage	VIH	0.7VDDI	-	VDDI	V
	VIL	GND	-	0.3VDDI	V

Backlight Unit (GND=0V)

Item	Symbol	Min	Typ	Max	Unit
LED current	IL	-	45	60	mA
LED voltage	VL	-	11.2	13.6	V
Operating LED life time	Hr	40000	-	-	Hour

Optical Specifications

Item		Symbol	Condition	Min	Type	Max	Unit
White luminance (Center)		Lv	Θ=0 Normal Viewing Angle IBL=80mA	1000	1100	--	cd/m2
Response time		Tr+Tf		--	35	40	ms
Contrast ratio		CR		900	1200	--	--
Color Chromaticity (CIE1931)	white	Wx		0.278	0.308	0.338
		Wy		0.309	0.339	0.369
Viewing Angle	Hor	ΘL	CR≥10	--	80	--
		ΘR		--	80	--
	Ver	ΘU		--	80	--
		ΘD		--	80	--
Brightness uniformity		Avg	Θ=0	80	90	--	%
Color Gamut		NTSC	Θ=0	65	70	--	%

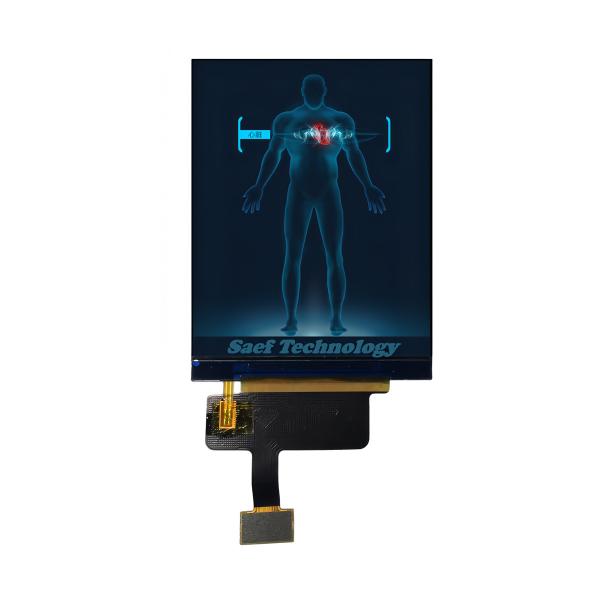

Product Image

1000nits 2.8" Sunlight Viewable TFT LCD Display - 480x640 RGB Industrial Display Module
